Automatic backwashing ensures consistent water quality.
Zero B Auto Iron Filter is to remove dissolved iron from the raw water
An automatic filtration system that ensures mud-free water.
EMI option is availableCompareAdd to wishlist

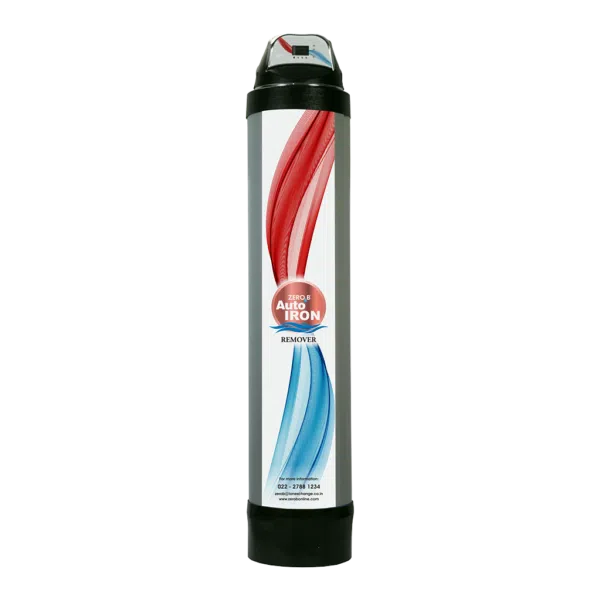

Zero B Auto Iron Filter is an automatic iron filtration system that delivers clear water from water full of iron particles. It is designed to remove all the dissolved iron from the raw water to enhance the performance.
|Model||3 Auto NGIF|
|Tank size (Pressure vessel)||14” x 65”, 2.5” Top Opening|
|Flow rate up to||3.0 m³/h|
|Working pressure (Kg/cm)|
|Filter media||ISR Resin & Coarse Silex|
|ISR resin (Liter)||110|
|Coarse Silex (Kg)||15|
|Output @5ppm Iron (m³)||22|
|Inlet, Outlet & Drain fitting||1”|
|Electric supply requirement||230VAC, 6 AMP|
|Process valve||Fully programmable automatic valve powered by 12VDC/1.5 AMP adaptor|
|Treated water Iron||<0.3 ppm|
* NOTE – Minimum 2 kg/cm² water pressure is required for Auto Iron filter operation. Pressure drop of the Auto iron remover filter at specified flow rate is around 0.8Kg/cm². Technical specifications are subject to change without prior notice
