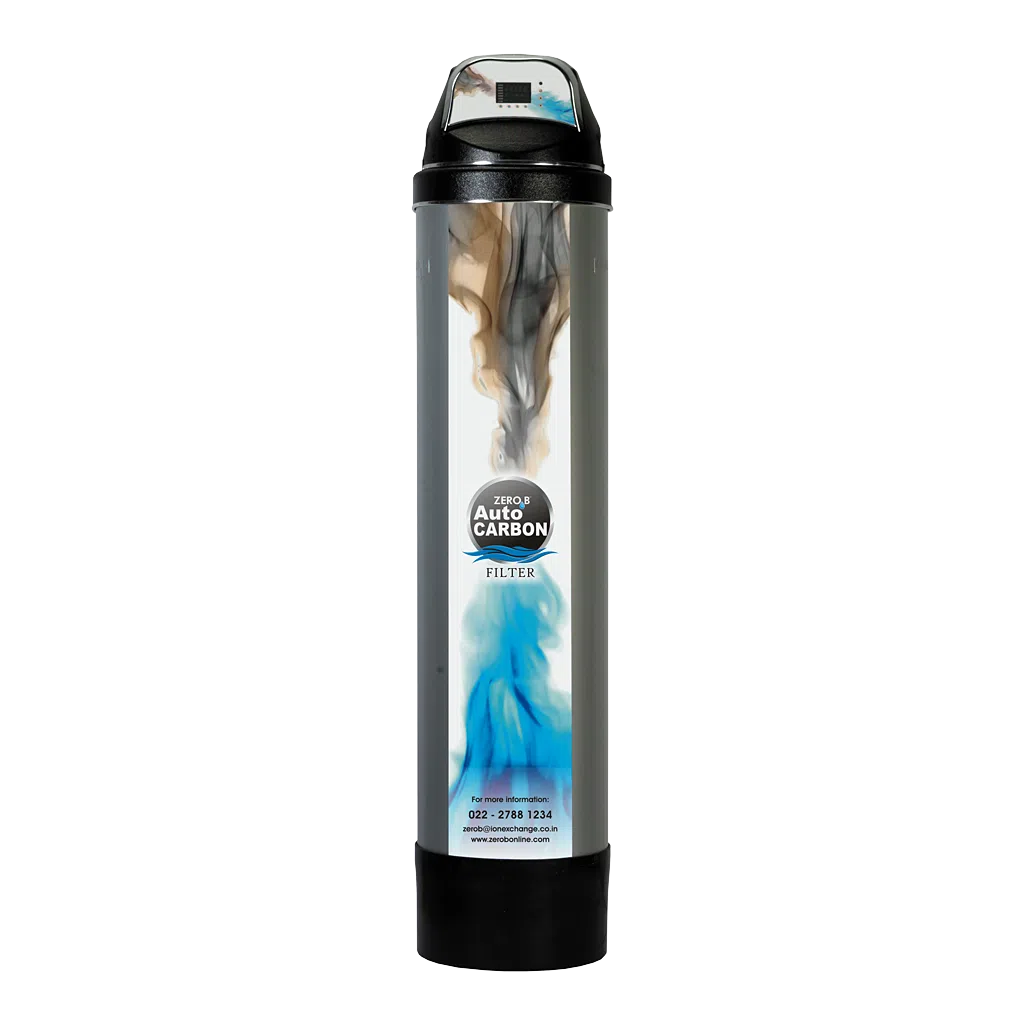

AutoCarbon

Features

For removal of chlorine, undesirable colour & odour from water

Tank Size (Pressure vessel) 13*54*2.5 top opening
Flow rate up to 3.0 m3/h
Working Oressure (Kg/cm2)

Minimum

Maximum


1.8

3.5
Filter Media Activated carbon, Resin & Coarse Silex
Inlet, Outlet and Dran fitting 1″
Electric supply requirement 230VAC, 6AMP
Process valve Fully programmable automatic valve powered by 12VDC/1.5 AMP adapter
Outlet Chlorine Nil
Outlet Colour, Odor Nil



Note: Minimum 1.8 Kg/cm2 water pressure is required for Auto carbon filter operation, Pressure drop of the Auto carbon filter of specified flow rate is around 0.8kg/cm2, Technical Specification are subject to change without prior notice.
